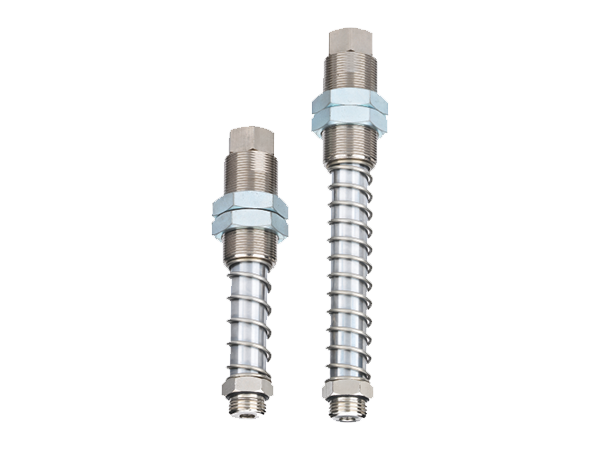

Features
◇ Heavy-duty spring for heavy-duty applications.
◇ Built-in oill free bushing has good wear resistance, which enhances life time.
Applications
◇ Suitable for applications where there is height difference.
◇ For condition in which shock absorption is required during handling process.
◇ For condition of short operating cycle and fast movement.
| How to order | ||||
| PSPH - E 25 G3M - M30 ① ② ③ ④ ⑤ | ||||
| ① Series | ② Buffer style | ③ Buffer stroke | ④ Sucction cup connection | ⑥ Mounting thread |
| PSPH | E- External spring | 25 50 75 90 | G3M - G3/8 Male thread G4M - G1/2 Male thread | M30 - M30×1.5 |

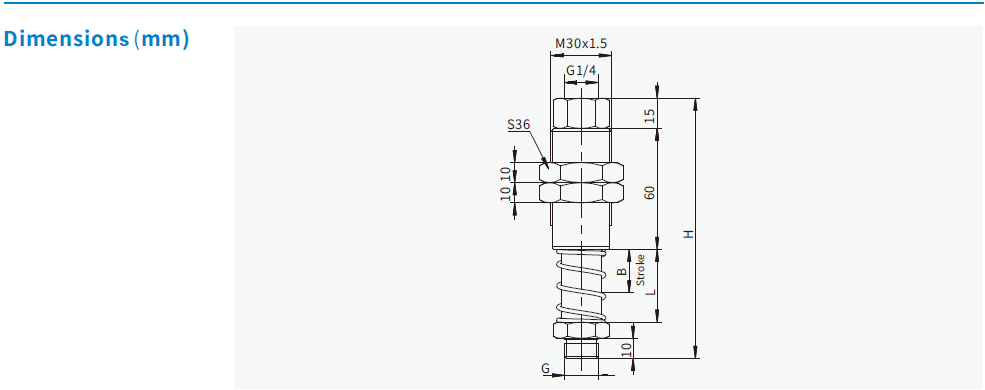

| Model | G | B | L | H | F1（N） | F2（N） |
| PSPH-E25G3M-M30 | G3/8 | 25 | 36 | 129 | 24.0 | 74.0 |
| PSPH-E50G3M-M30 | G3/8 | 50 | 65 | 158 | 17.0 | 77.0 |
| PSPH-E75G3M-M30 | G3/8 | 75 | 107 | 200 | 41.0 | 79.0 |
| PSPH-E90G3M-M30 | G3/8 | 90 | 119 | 212 | 29.0 | 74.0 |
| PSPH-E25G4M-M30 | G1/2 | 25 | 36 | 129 | 24.0 | 74.0 |
| PSPH-E50G4M-M30 | G1/2 | 50 | 65 | 158 | 17.0 | 77.0 |
| PSPH-E75G4M-M30 | G1/2 | 75 | 107 | 200 | 41.0 | 79.0 |
| PSPH-E90G4M-M30 | G1/2 | 90 | 119 | 212 | 29.0 | 74.0 |
◇Note： "F1 "means spring force at 0 stroke, F2 means spring force at max stroke.
